Self Contained Aluminum Pin

Jace Aluminum Pin

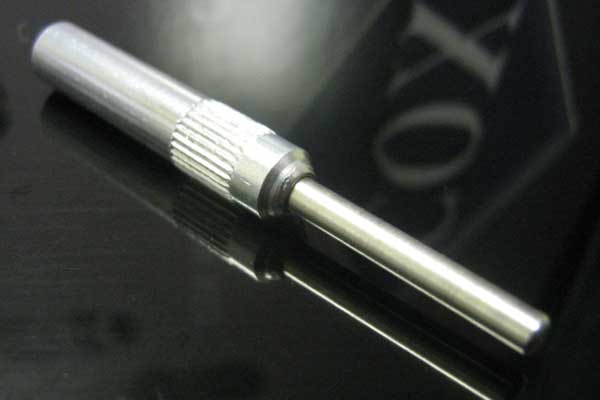

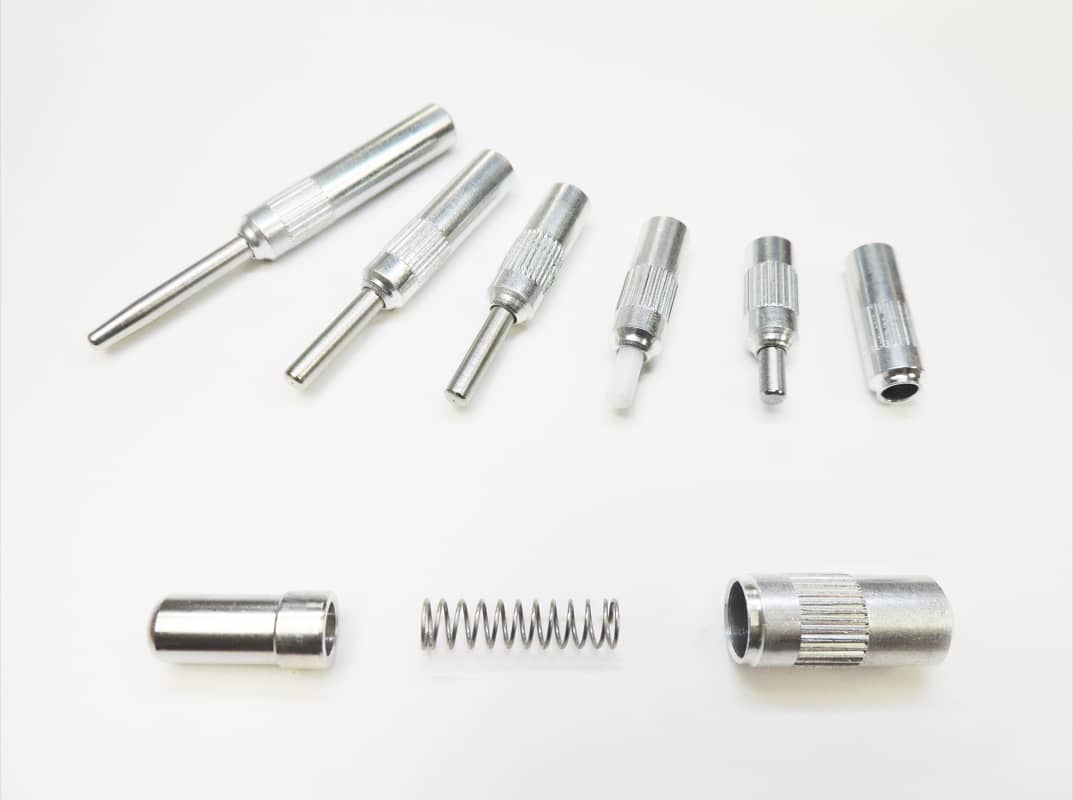

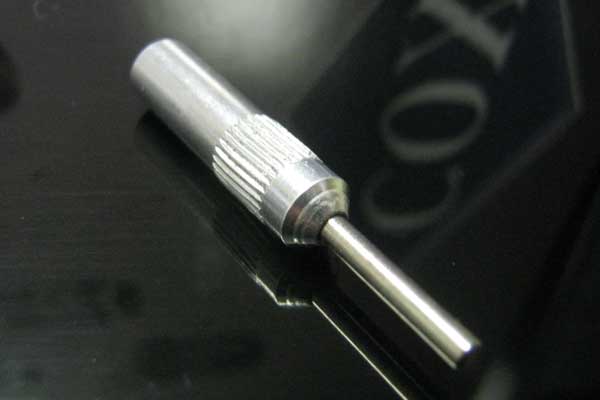

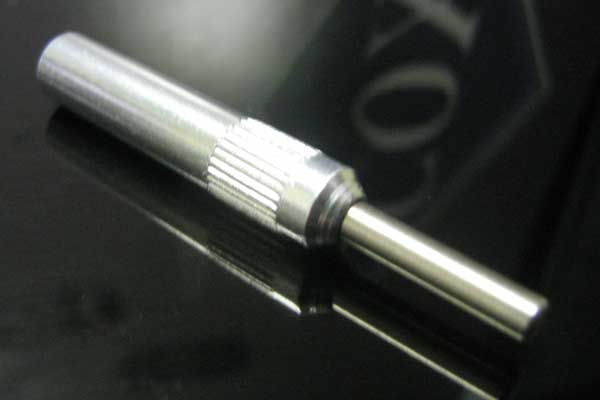

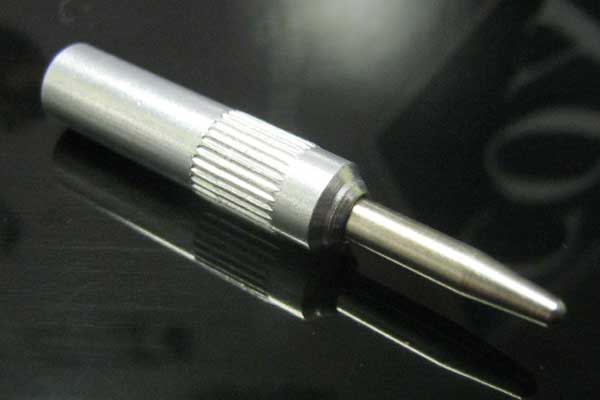

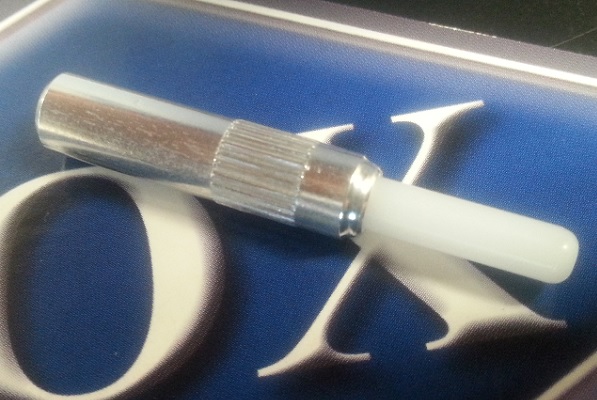

The Self Contained Aluminum Pin is made of a body or housing, made from high quality 2011T3 Aluminum, an internal stainless steel spring, and a pin made from 12L14 steel which is then nickel plated. Shenzhen Machine Screw Parts Inc. ensures each Jace Pin assembly is built with quality and craftsmanship for unparalleled performance on the job. This design is fully contained and perfectly suited for applications where space is limited. The knurled feature on the housing provides an added gripping surface to ensure proper hold when the assembly is installed.

With many standard sizes to choose from, plus the flexibility to custom manufacture the assembly that is best suited for your application, the self contained pin assembly is the smart choice. Please see our many standard assembly configurations below most of which are available from stock.

Dimension Chart - In Inches

Part Number

Barrel Diameter

Barrel Length

Pin Length / Travel

Pin Diameter

A-101

1/4"

5/8"

1/4"

1/8"

A-101-D*

1/4"

5/8"

1/4"

1/8"

A-103*

1/4"

11/16"

7/16"

1/8"

A-201

1/4"

3/4"

1/4"

1/8"

A-203

1/4"

3/4"

1/2"

1/8"

A-203-D

1/4"

3/4"

1/2"

1/8"

A-204-T

1/4"

3/4"

1/2"

1/8"

A-205*

1/4"

3/4"

1/2"

5/32"

A-301*

1/4"

1"

9/16"

3/32"

A-303

1/4"

1"

9/16"

1/8"

A-303-D**

1/4"

1"

9/16"

1/8"

A-304-T

1/4"

1"

9/16"

1/8"

A-305

1/4"

1"

9/16"

5/32"

A-305-D**

1/4"

1"

9/16"

5/32"

A-401*

1/4"

1-1/4"

9/16"

1/8"

A-403

1/4"

1-1/4"

13/16"

1/8"

A-404-T

1/4"

1-1/4"

13/16"

1/8"

A-503

5/16"

3/4"

1/2"

3/16"

A-603

11/32"

3/4"

7/16"

1/4"


Part Number

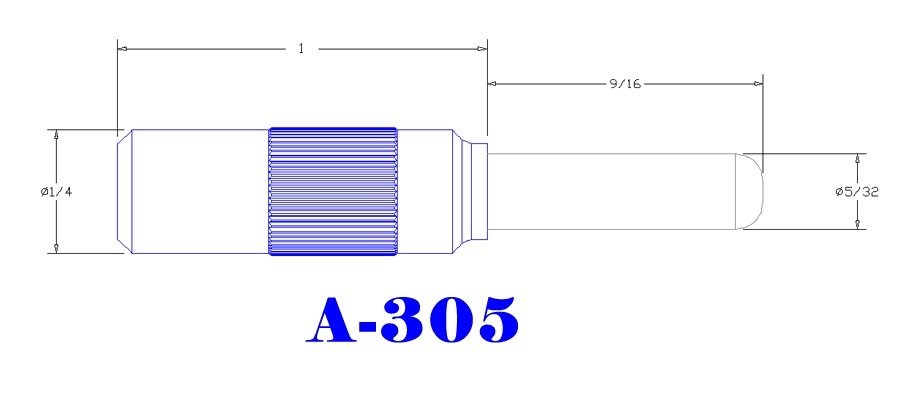

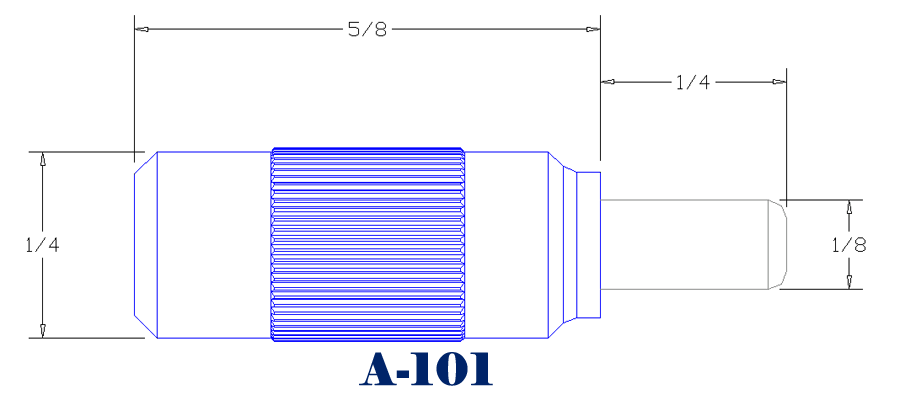

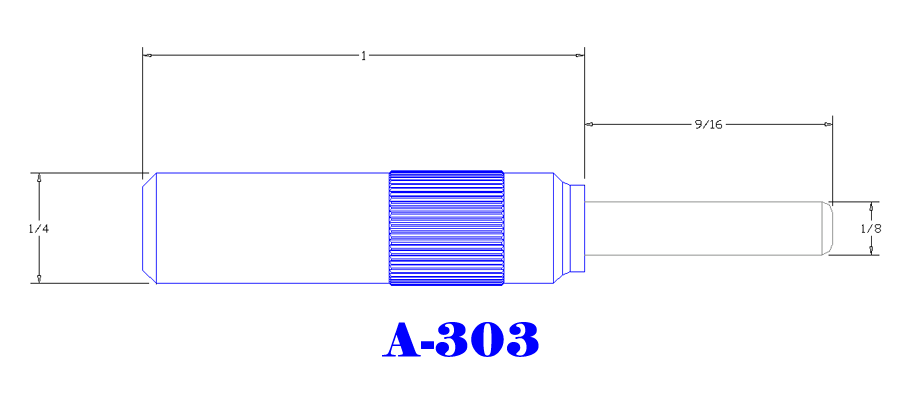

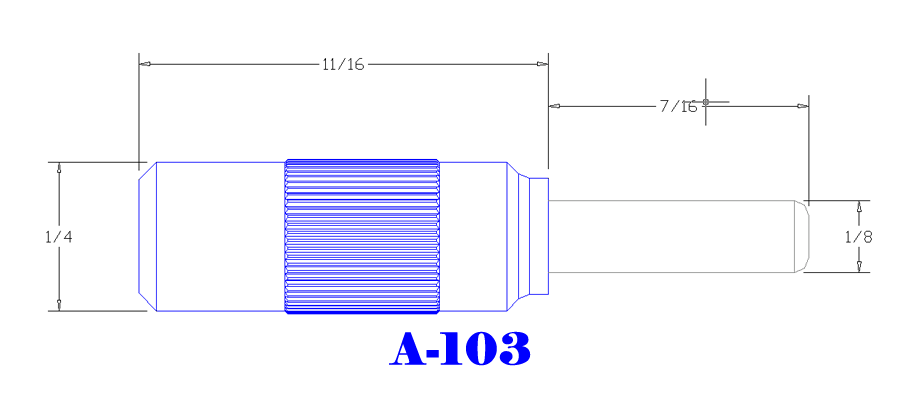

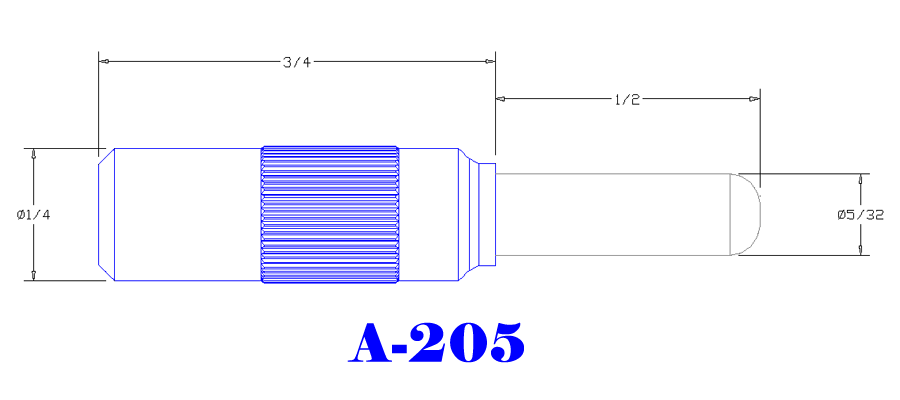

Print

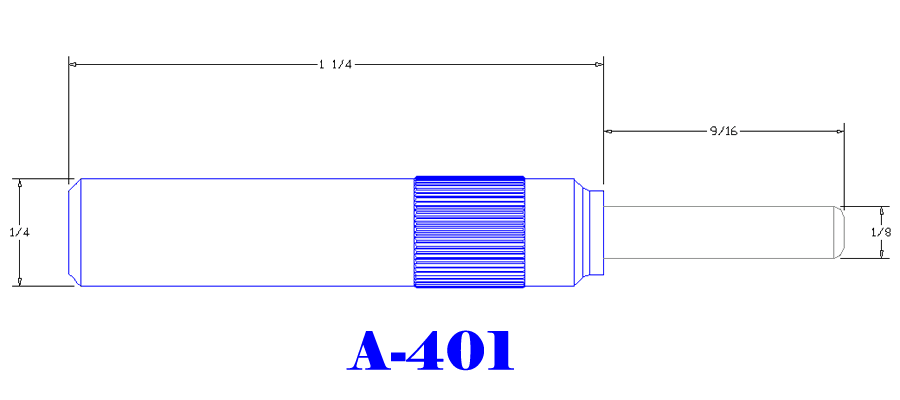

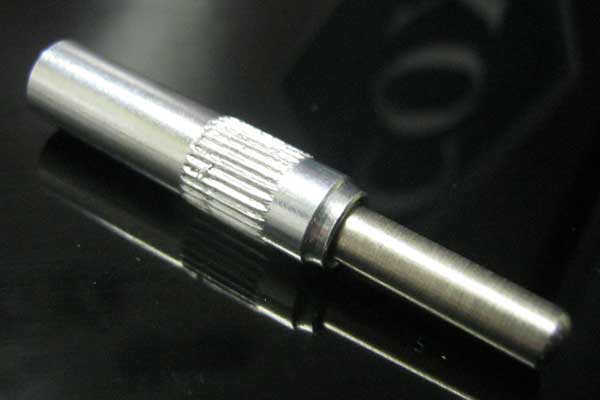

A-101

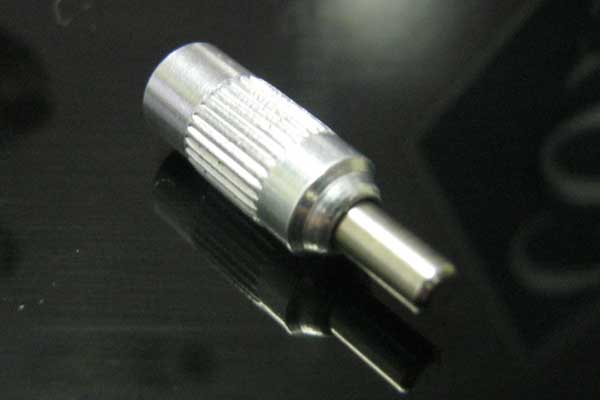

A-101 Jace Pin A-101 Jace Aluminum Pin

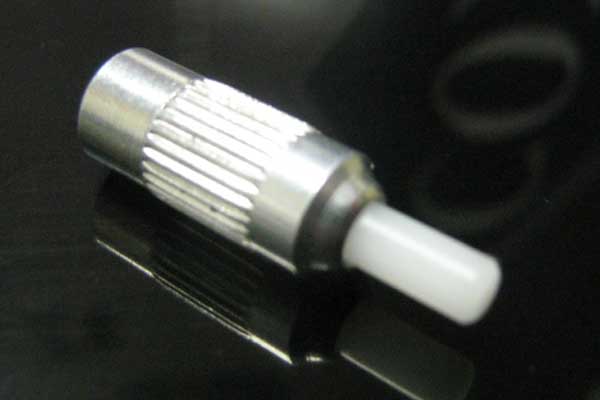

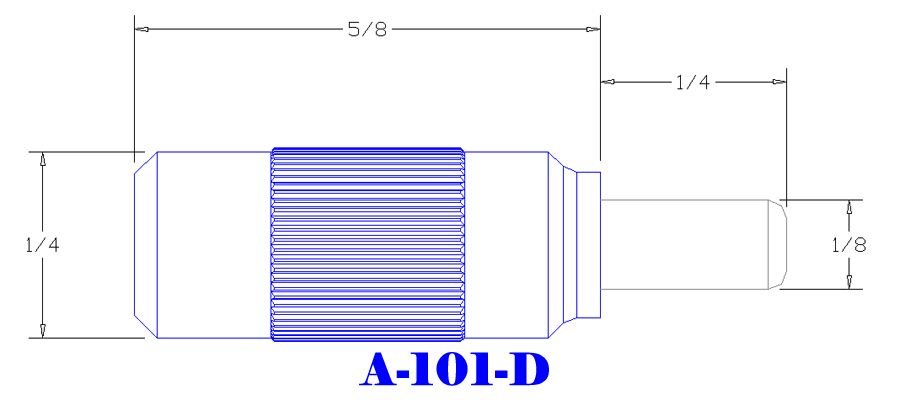

A-101-D*

A-101 D Jace Pin A-101 D Jace Aluminum Pin

A-103*

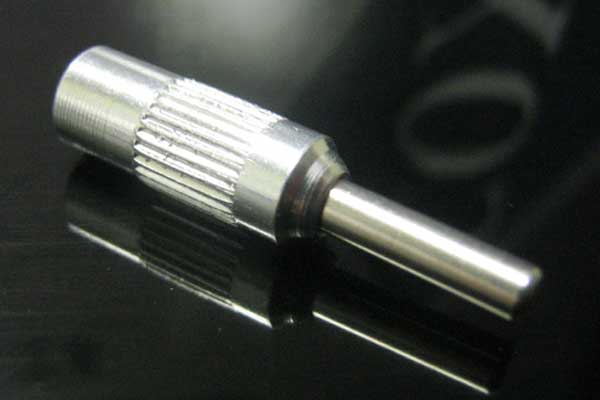

A-103 Jace Pin A-103 Jace Aluminum Pin

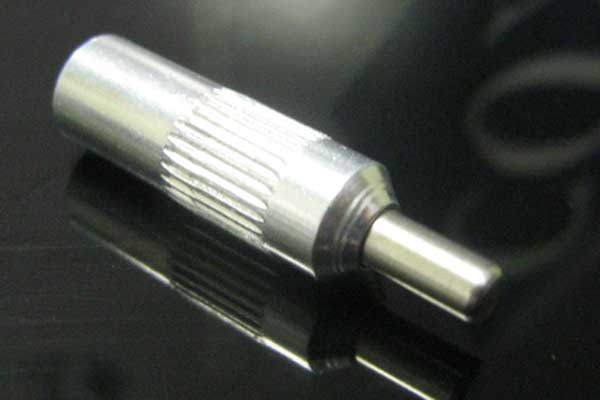

A-201

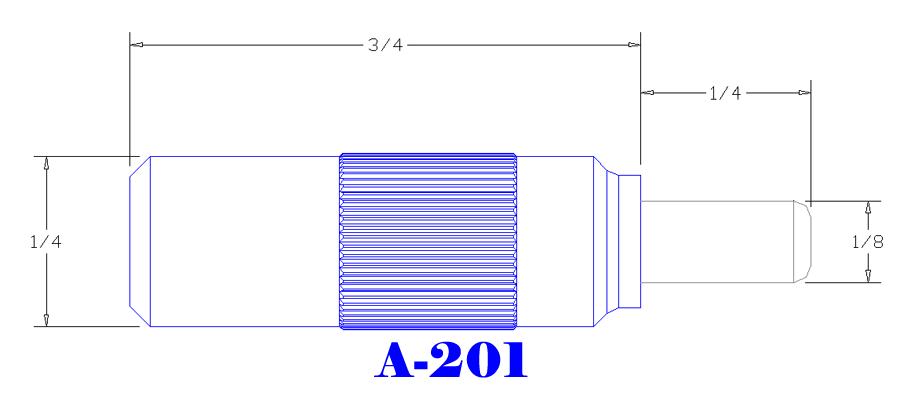

A-201 Jace Pin A-201 Jace Aluminum Pin

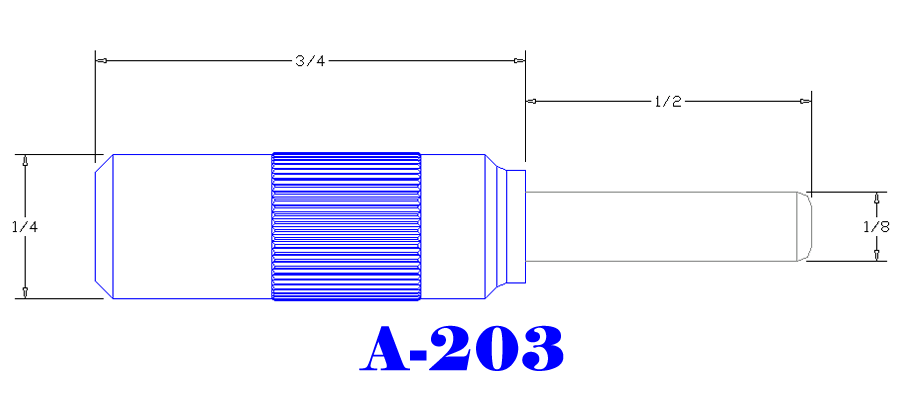

A-203

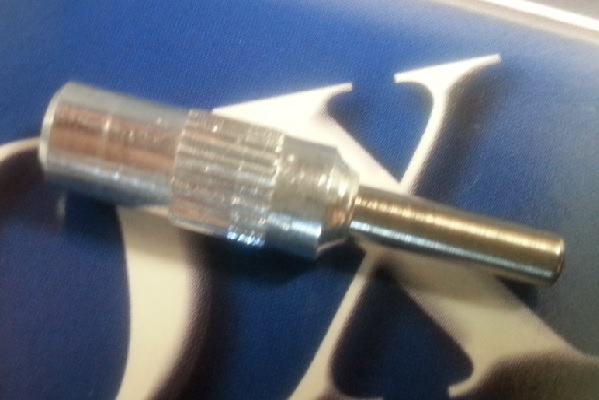

A-203 Jace Pin A-203 Aluminum Jace Pin

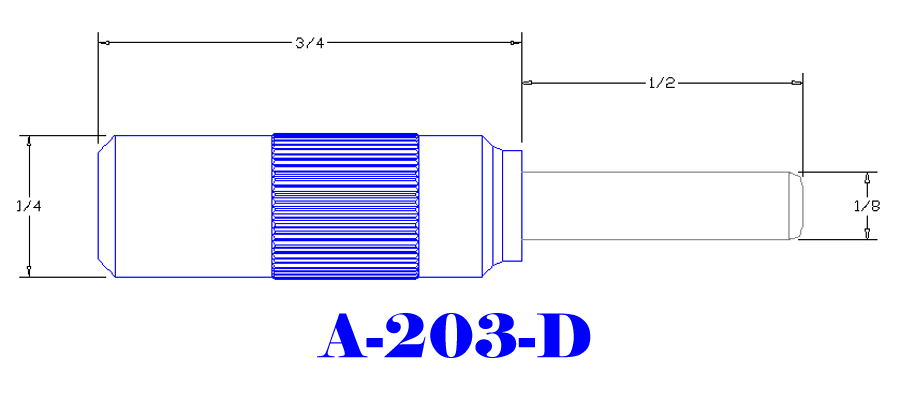

A-203-D

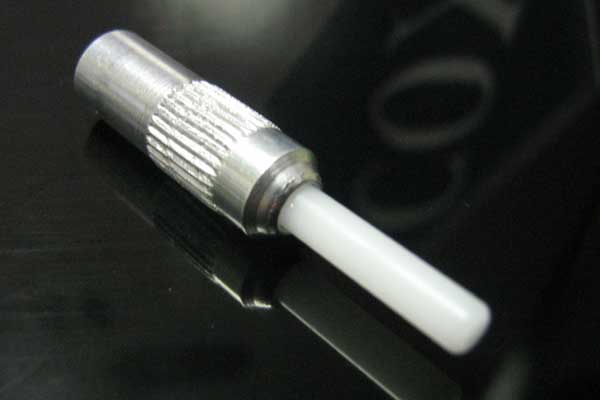

A-203 D Jace Pin A-203 D Jace Aluminum Pin

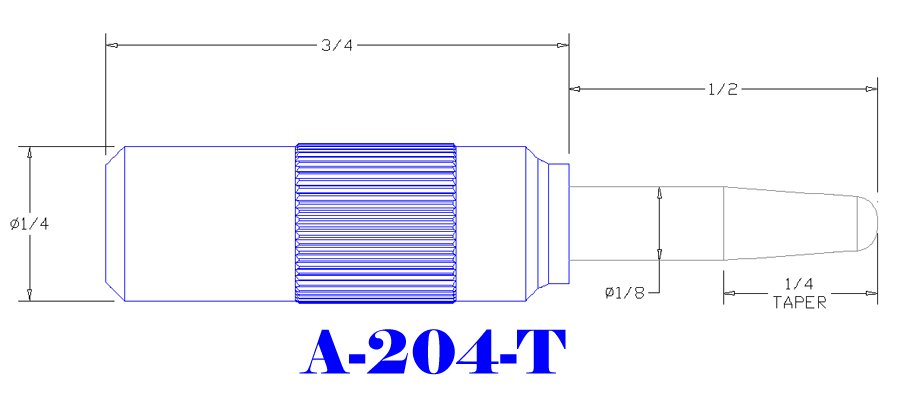

A-204-T

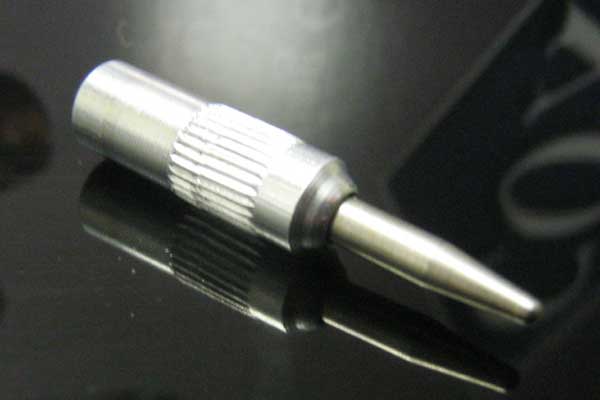

A-203 T Jace Pin A-203 T Jace Aluminum Pin

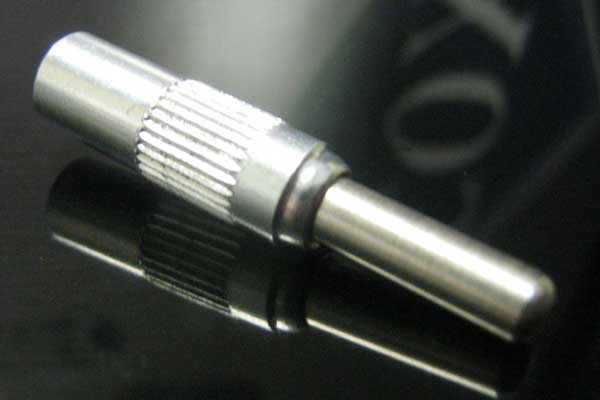

A-205*

A-205 Jace Pin A-205 Jace Aluminum Pin

A-301*

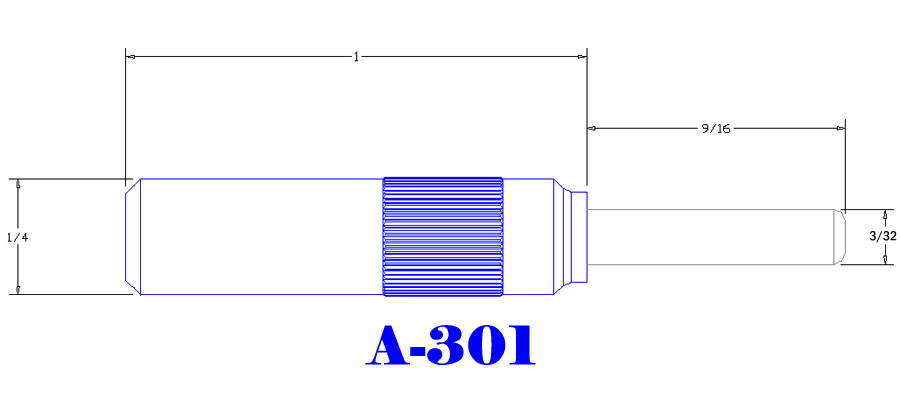

A-301 Jace Pin A-301 Jace Aluminum Pin

A-303

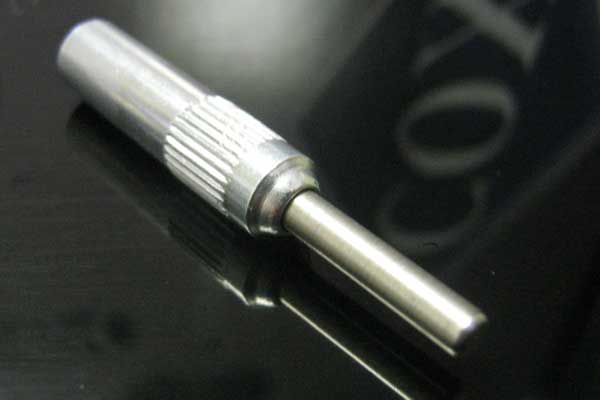

A-303 Jace Pin A-303 Jace Aluminum Pin

A-303-D**

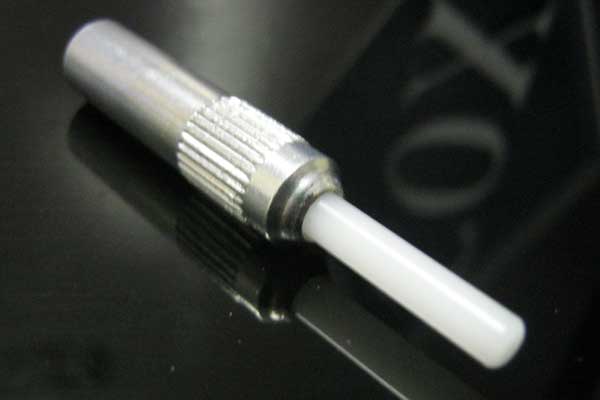

A-303 D Jace Pin A-303 D Jace Aluminum Pin

A-304-T

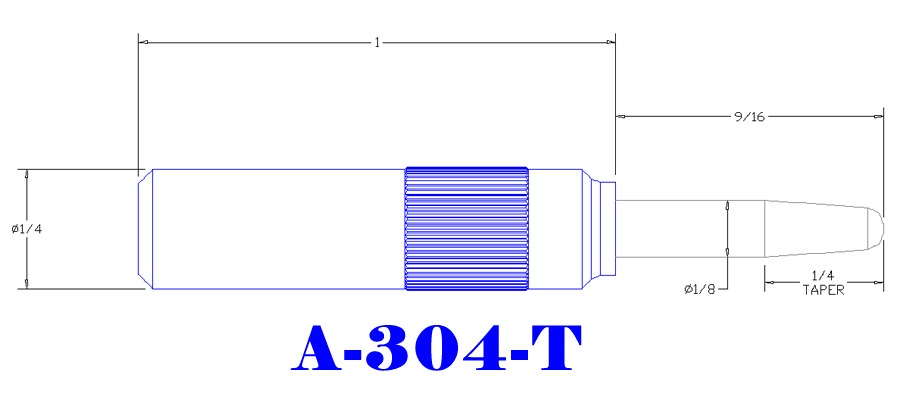

A-303 T Jace Pin A-303 T Jace Aluminum Pin

A-305

A-305 Jace Pin A-305 Jace Pin

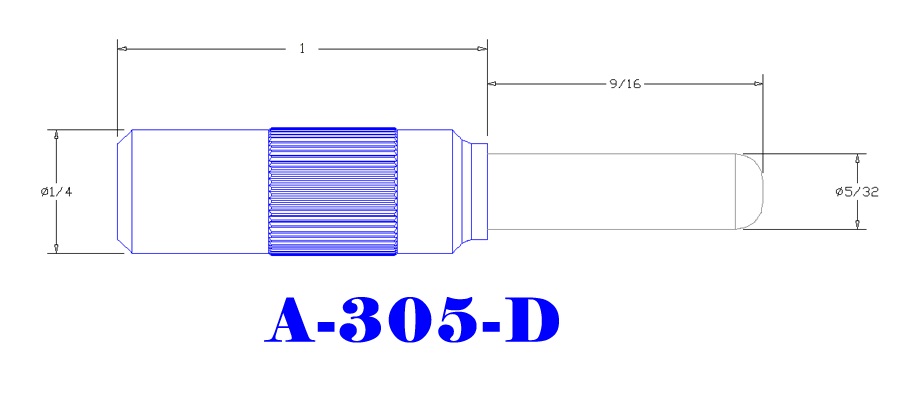

A-305-D**

A-305 D Jace Pin A-305 D Jace Aluminum Pin

A-401*

A-401 Jace Pin A-401 Jace Aluminum Pin

A-403

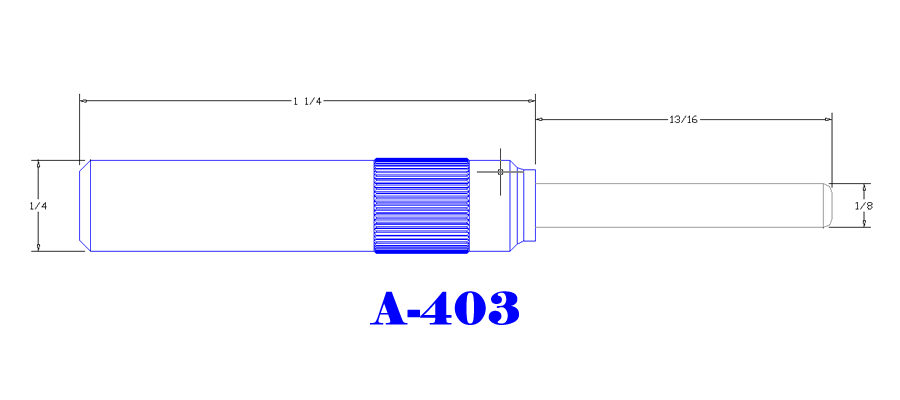

A-403 Jace Pin A-403 Jace Aluminum Pin

A-404-T

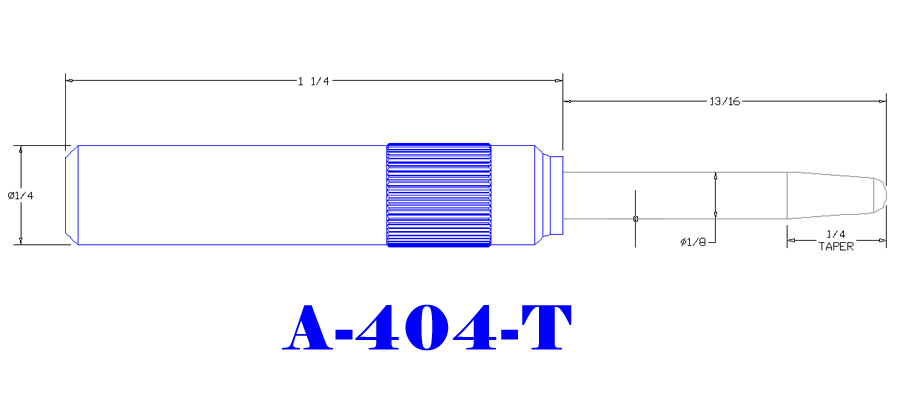

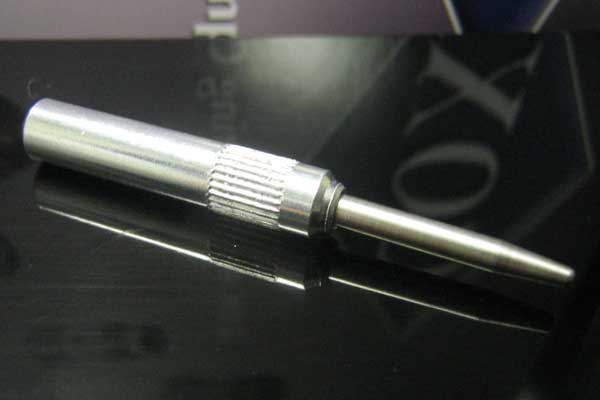

A-404 T Jace Pin A-404 T Jace Aluminum Pin

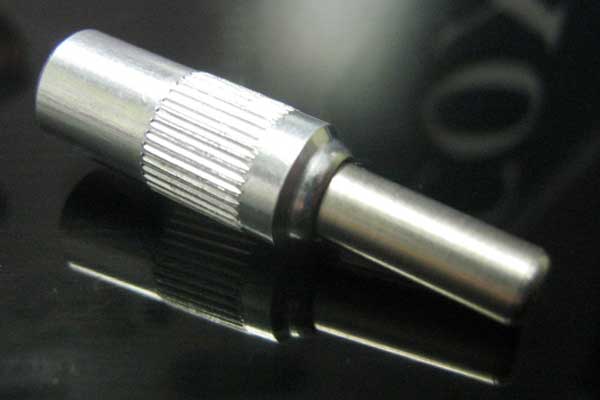

A-503

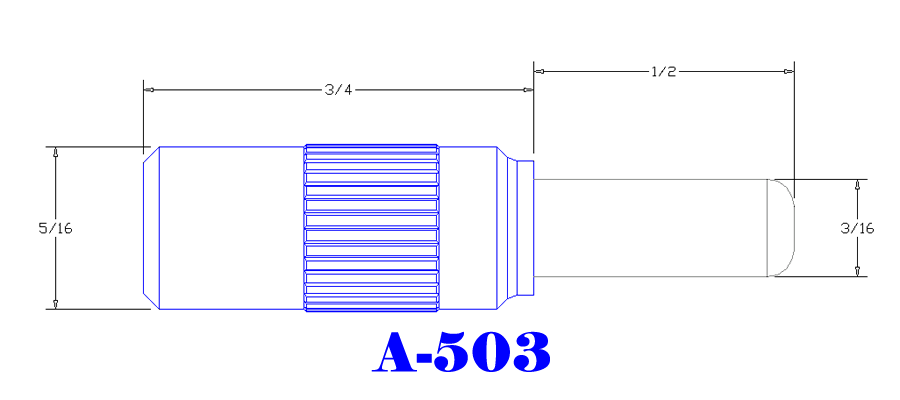

A-503 Jace Pin A-503 Jace Aluminum Pin

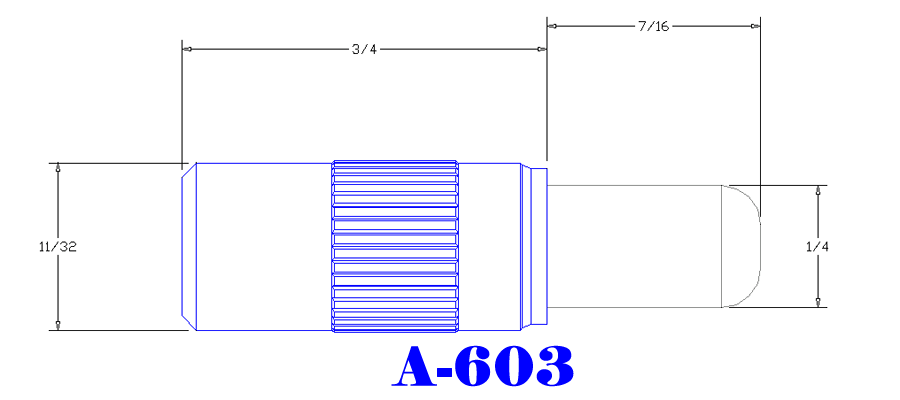

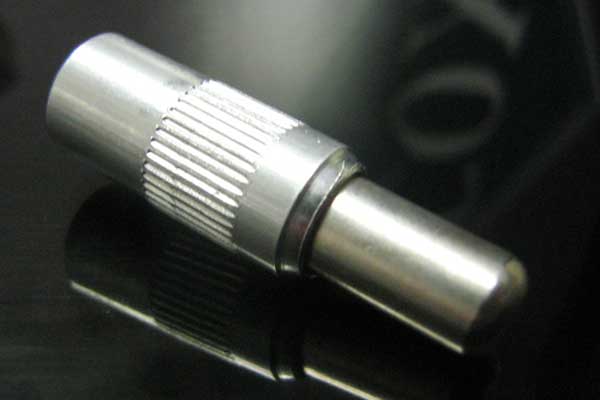

A-603

A-603 Jace Pin A-603 Jace Aluminum Pin

* - Limited stock on hand. For larger quantities, please contact us.

** - Part numbers are available for special order only. For special orders, please contact us.


Contact us to find out how Shenzhen Machine Screw Parts Inc. can supply you with brass pins or request a quote here.
