Brass Thru Pin

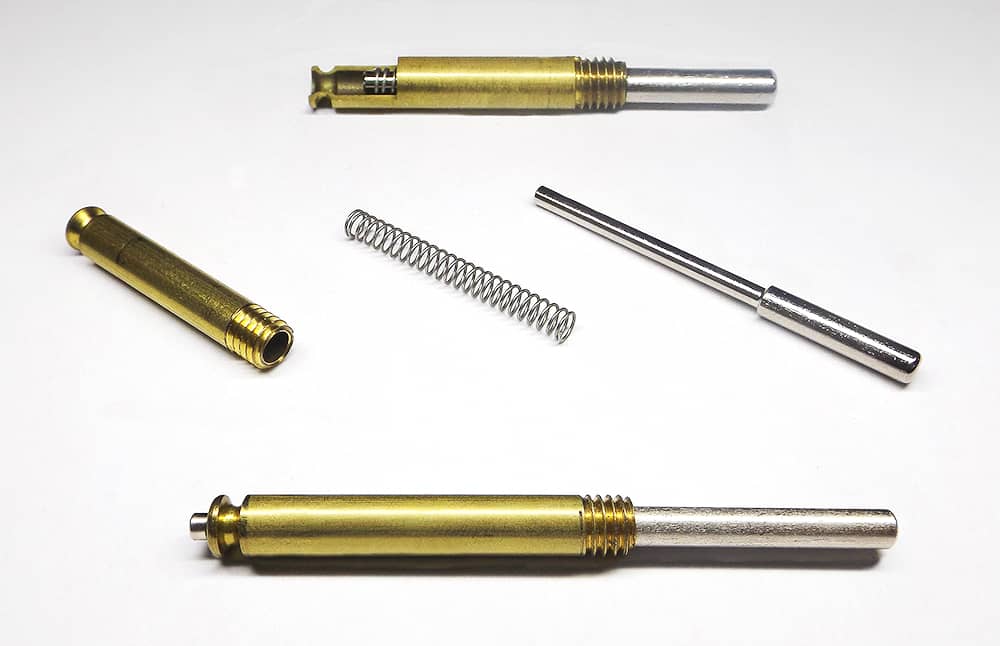

The Brass Thru Pin is made of a body or housing, made from high quality 335 Brass with a 10-32 thread x 1/8" or 3/8" long, an internal stainless steel spring, and a pin made from nickel-plated 12L14 steel. Shenzhen Machine Screw Parts Inc. ensures each Jace Pin assembly is built with quality and craftsmanship for unparalleled performance on the job. With this design, the pin is compressed the tail end of the pin is pushed out of the body. With a variety of sizes available and a completely customizable specialty design option, this assembly is sure to provide optimal results for your application.
With many standard sizes to choose from, plus the flexibility to custom manufacture the assembly that is best suited for your application, the brass thru pin assembly is the smart choice. Please see our many standard assembly configurations below, most of which are available from stock.
Dimension Chart - In Inches
|
Part Number |
Barrel Diameter |
Barrel Length |
Pin Length / Travel |
Pin Diameter |
|---|---|---|---|---|
|
B-201* |
3/16" |
13/16" |
1/4" |
1/8" |
|
B-203* |
3/16" |
13/16" |
7/16" |
1/8" |
|
B-303 |
3/16" |
1-1/32" |
9/16" |
1/8" |
|
B-401* |
3/16" |
1-1/4" |
9/16" |
1/8" |
|
B-403 |
3/16" |
1-1/4" |
13/16" |
1/8" |
|
Part Number |
Image |
|
|

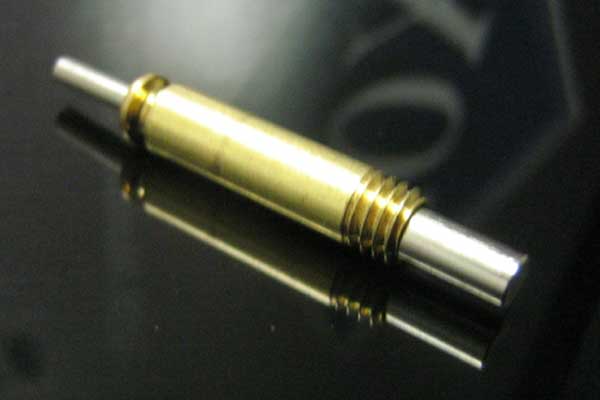

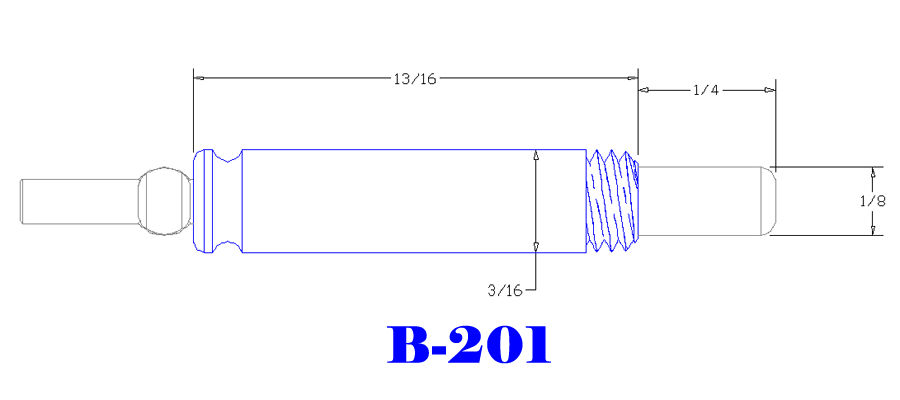

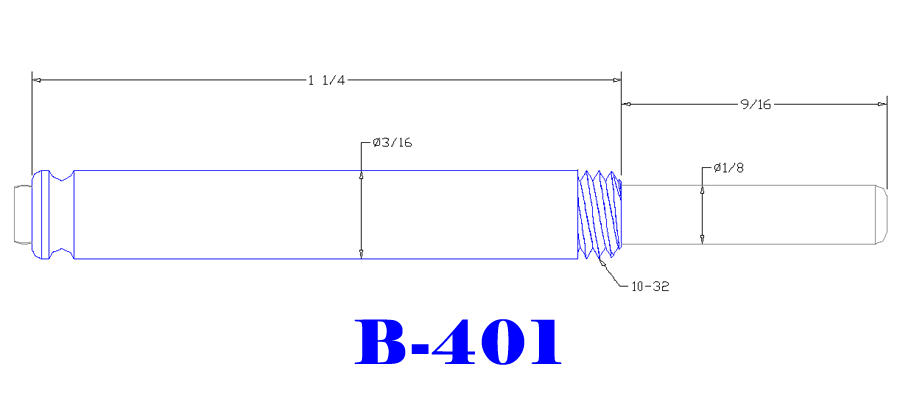

B-201* |
 |
 |
|

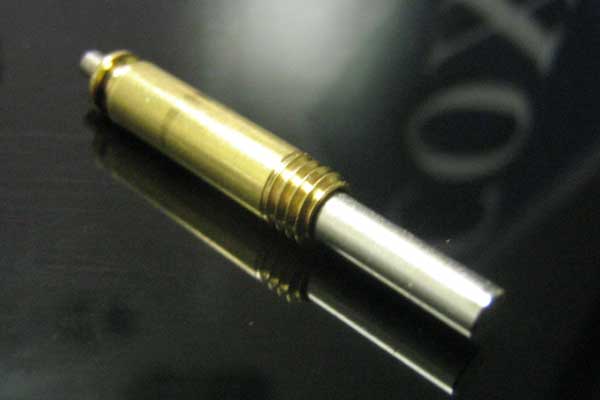

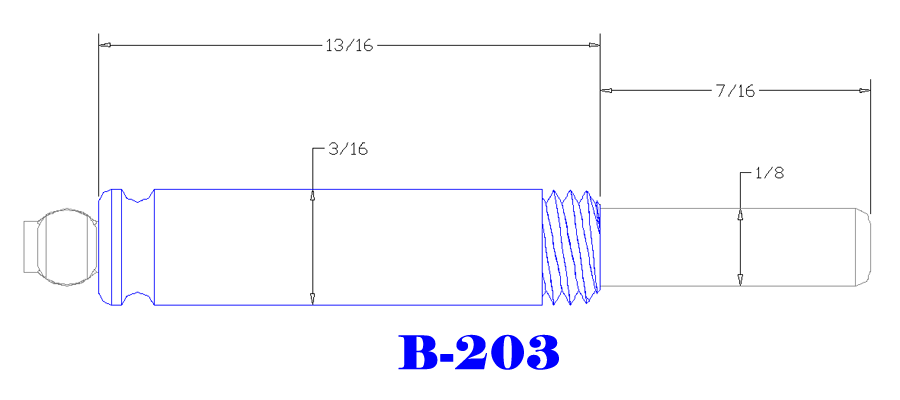

B-203* |
 |
 |
|

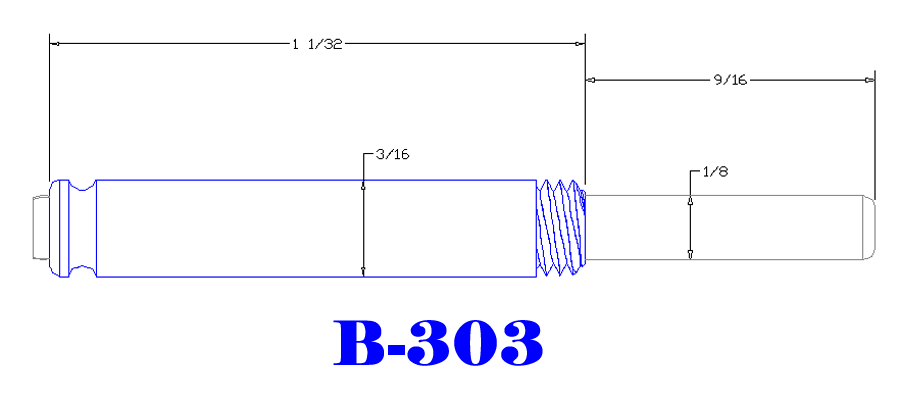

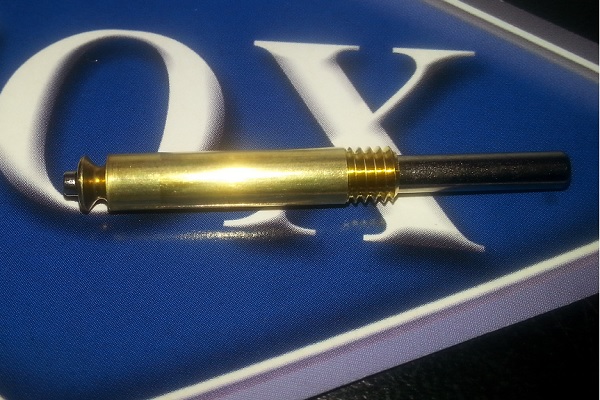

B-303 |
 |
 |
|

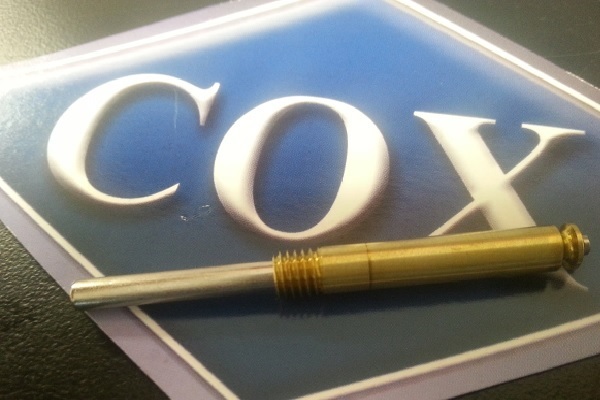

B-401* |
 |
 |
|

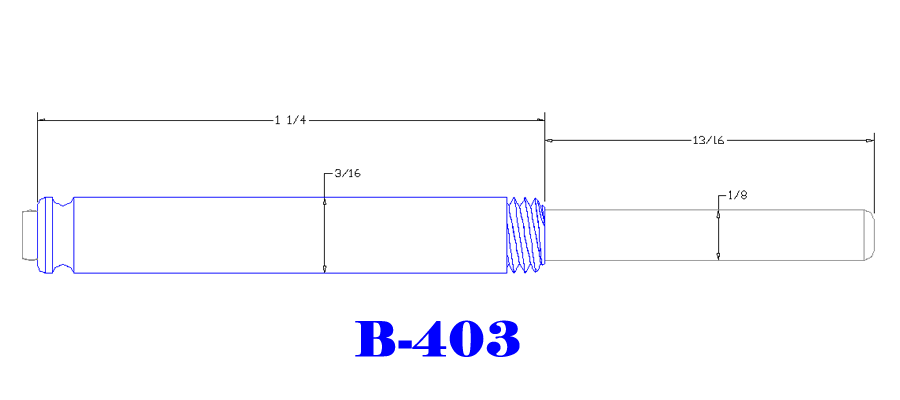

B-403 |
 |
 |
* - Limited stock on hand. For larger quantities, please contact us.
** - Part numbers are available for special order only. For special orders, please contact us.
Contact us to find out how Shenzhen Machine Screw Parts Inc. can supply you with brass pins or request a quote here.
