Tellurium Copper C14500
Tellurium copper alloy 145 (TeCu) is considered a free-machining copper alloy, ideal for parts that require extensive machining, corrosion resistance, or high conductivity. It produces short, clean chips that are easily removable. Tellurium copper machines more quickly and efficiently than pure copper.
TeCu has a machining cost factor of 0.8 when compared to steel 12L14. It is good for hot and cold working, forging, brazing, and soldering, but is not ideal for welding. TeCu can be annealed.
Industries & Applications
- Electrical contacts
- Bolts
- Fittings

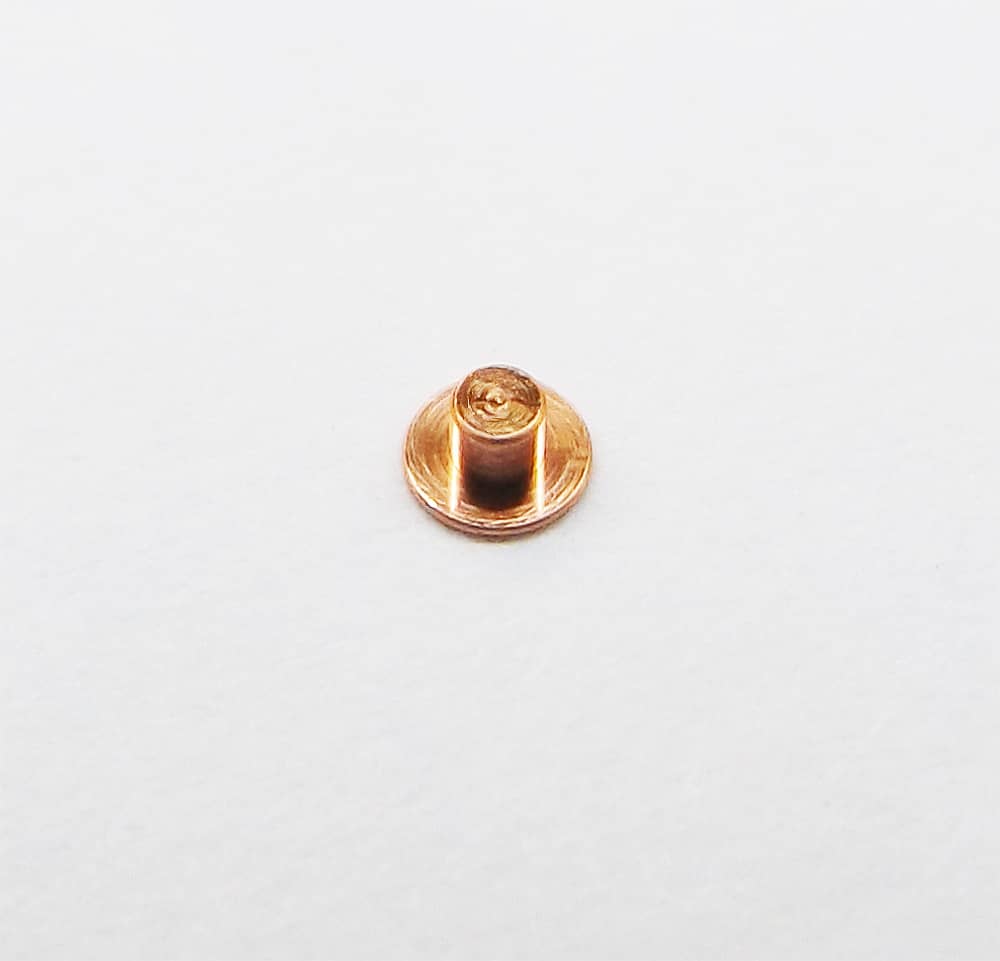

Copper Parts Gallery
View more products on our Gallery Page
Tellurium Copper C145 Characteristics
|
TEMPER |
Yield Strength |
Ultimate Tensile Strength |
Modulus of Elasticity |
Brinell Hardness (500kg/10mm) |
|
Annealed |
11 |
33 |
17,000 |
38 |
|
1/2 Hard |
40 |
42 |
17,000 |
76 |
|
Hard |
44 |
48 |
17,000 |
81 |
Copper Cost Comparison
| Type | General Characteristics | Alloy | Common Applications | Tolerances for a 1/2" Dia. Bar | Material Cost Factor | Machining Cost Factor |
|---|---|---|---|---|---|---|
| Copper Alloys |
Excellent electrical conductivity
|
TeCu C14500 |
Electrical contacts
|
+/-.0015 | 4.1 | .8 |
Common Material Cost Comparison
| Type | General Characteristics | Alloy | Common Applications | Tolerances for a 1/2" Dia. Bar | Material Cost Factor | Machining Cost Factor |
|---|---|---|---|---|---|---|
| Steel |
Designed for excellent machinability. Case hard only
|
12L14 |
Endless commercial products; probably more pounds used in turned products than any other bar stock
|
Cold drawn 0 |
1 | 1 |
| Stainless Steel |
Designed for machining, non-magnetic
|
303 |
Electronic hardware, automotive, aerospace, medical instruments, and many applications requiring corrosion resistance
|
Cold finished +/- .002 |
1.9 | 2.7 |
| Brass |
Strength, corrosion and wear resistance, and excellent machinability
|
C35300 |
Well suited for parts with knurling or threading
|
+0015 | 3.5 | .07 |
| Aluminum |
Designed for machining
|
2011 |
Electronic hardware, endless commercial products
|
Cold finish +/-.0015 |
3.8 | .6 |
| Titanium |
High strength, light weight, good bio-compatibility
|
Ti-6Al-4VEli |
Medical implants
|
Ground & polished +/-.002 |
30.2 | 6 |
To review our Machining Materials Guide, please click here.
