PEEK Machined Parts
Polyether ether ketone (PEEK) is a popular high strength plastic resin, ideal for parts that require strength and stiffness. It has an extremely high resistance to heat, moisture, and chemicals and can withstand multiple cycles in hot water or steam. PEEK also performs well in ultra-high vacuum environments.
PEEK has a machining cost factor of 0.9 when compared to steel 12L14.
Industries & Applications
- Bearings
- Bushings
- Pump components
- Medical implants
- Aerospace components

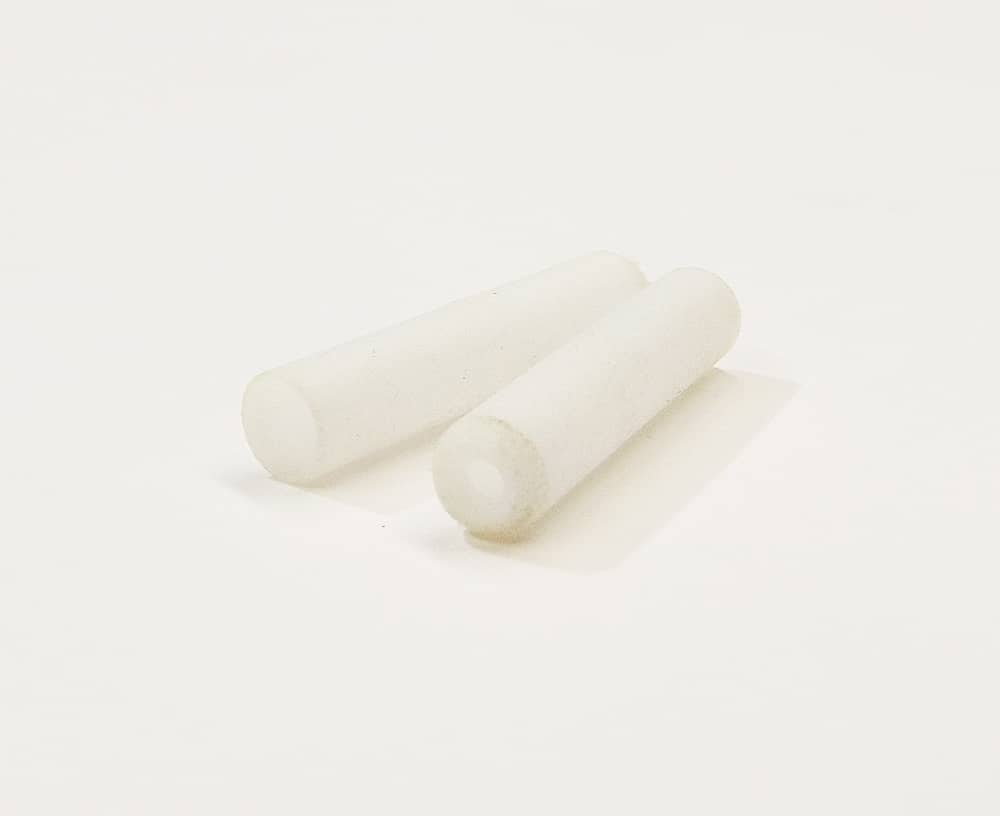

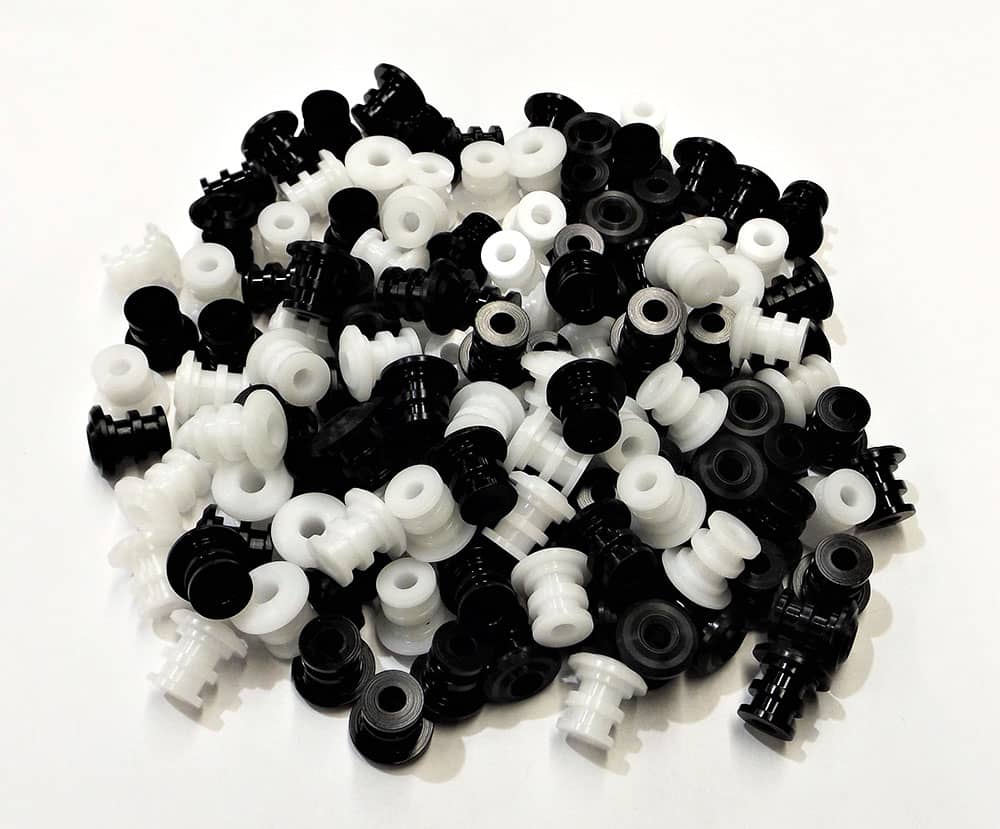

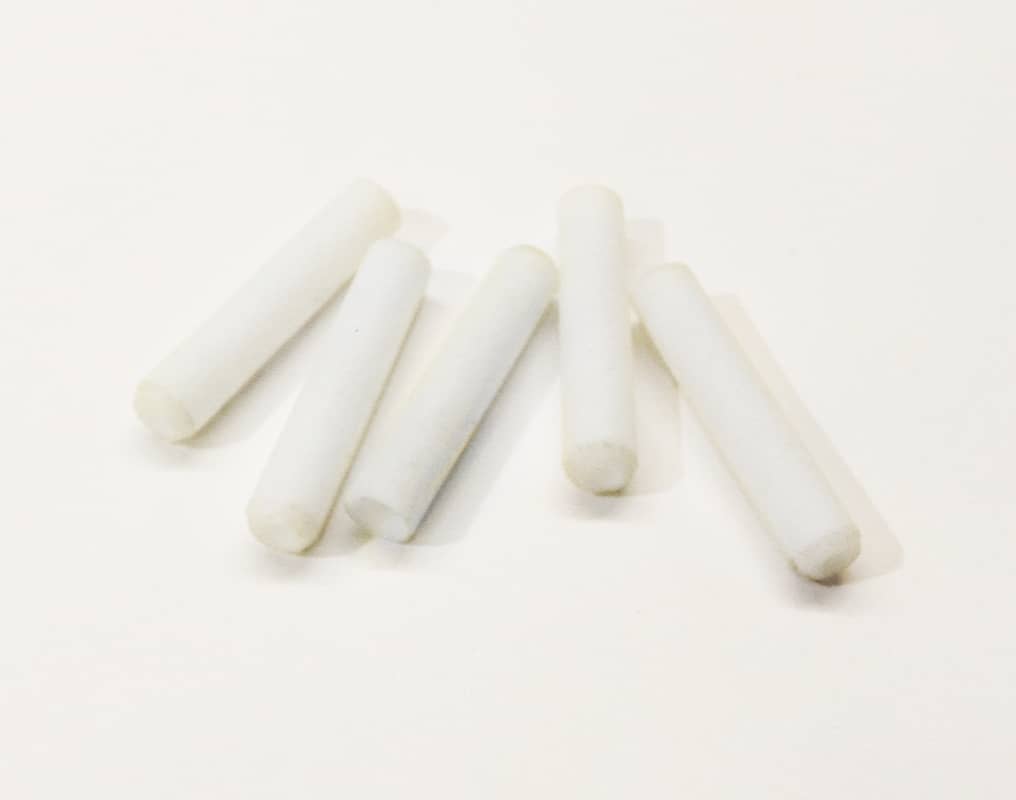

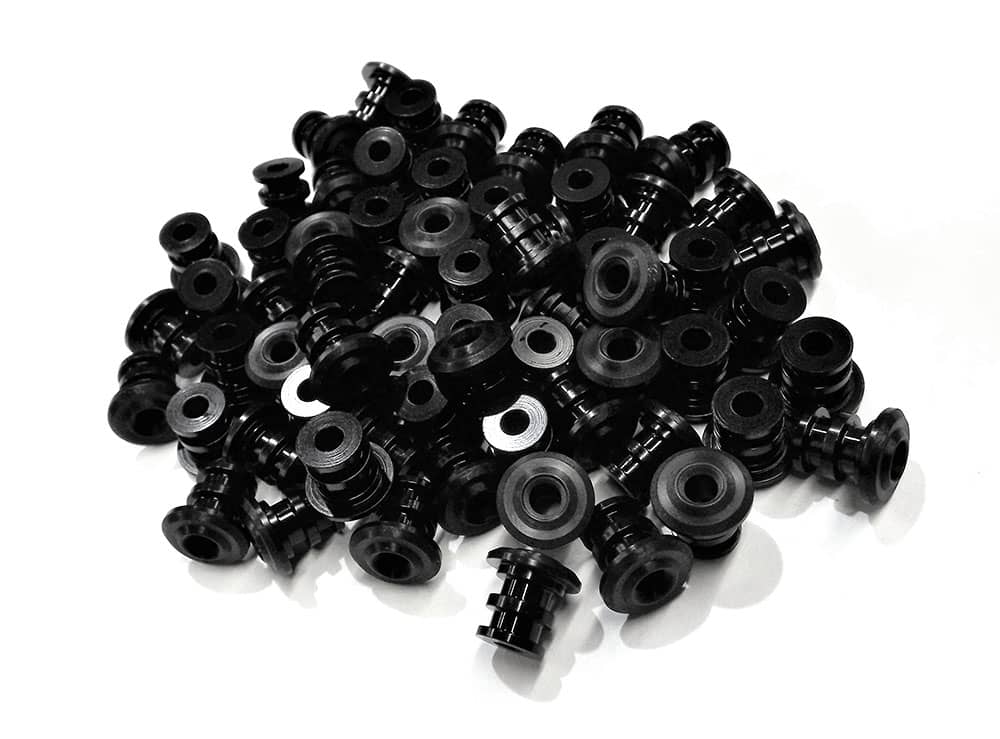

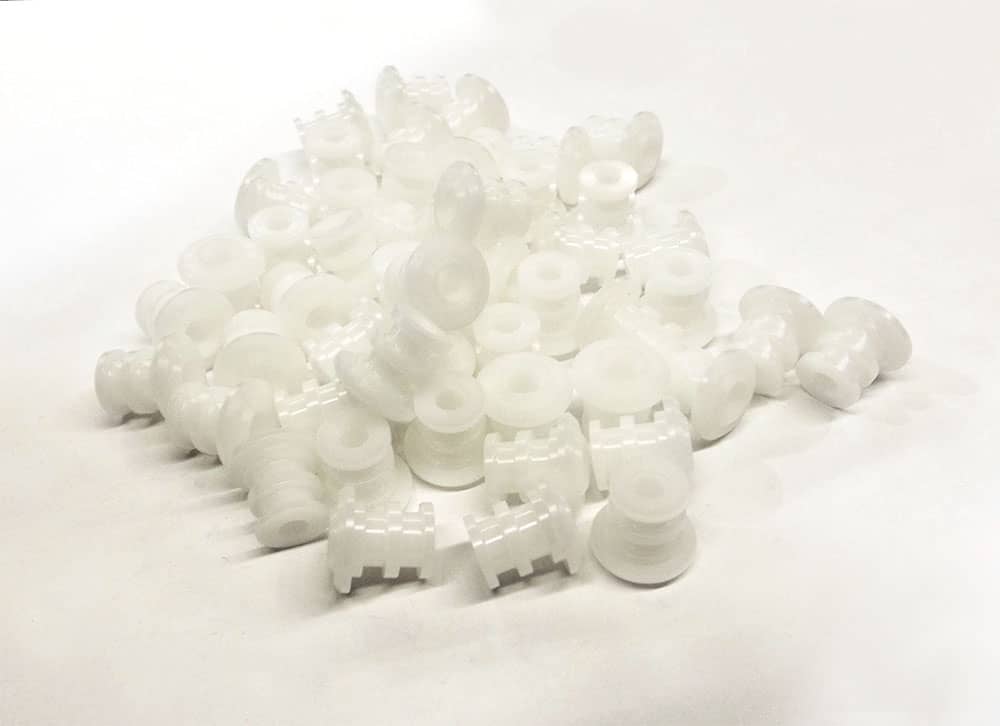

Plastics Gallery
View more products on our Gallery Page
PEEK Characteristics
|
TEMPER |
Yield Strength |
Ultimate Tensile Strength |
Modulus of Elasticity |
Brinell Hardness (500kg/10mm) | |
|
20% Glass Fiber |
17 |
1,000 |
|||
|
30% Glass Fiber |
23 |
15 |
1,500 |
Rock R - 120 |
|
|
30% Carbon Fiber |
29 |
15 |
3,500 |
Rock R - 120 |
|
|
Unfilled |
14 |
7.3 |
580 |
Rock R - 120 |
Plastic Cost Comparison
| Type | General Characteristics | Alloy | Common Applications | Tolerances for a 1/2" Dia. Bar | Material Cost Factor | Machining Cost Factor |
|---|---|---|---|---|---|---|
| Plastics |
High strength plastic resin, extremely high resistance to heat, moisture, and chemicals
|
PEEK |
Bearings, Bushings, Pump components, Medical implants, Aerospace components
|
+0.004-0 | 71.6 | .9 |
Common Material Cost Comparison
| Type | General Characteristics | Alloy | Common Applications | Tolerances for a 1/2" Dia. Bar | Material Cost Factor | Machining Cost Factor |
|---|---|---|---|---|---|---|
| Steel |
Designed for excellent machinability. Case hard only
|
12L14 |
Endless commercial products; probably more pounds used in turned products than any other bar stock
|
Cold drawn 0 |
1 | 1 |
| Stainless Steel |
Designed for machining, non-magnetic
|
303 |
Electronic hardware, automotive, aerospace, medical instruments, and many applications requiring corrosion resistance
|
Cold finished +/- .002 |
1.9 | 2.7 |
| Brass |
Strength, corrosion and wear resistance, and excellent machinability
|
C35300 |
Well suited for parts with knurling or threading
|
+0015 | 3.5 | .07 |
| Aluminum |
Designed for machining
|
2011 |
Electronic hardware, endless commercial products
|
Cold finish +/-.0015 |
3.8 | .6 |
| Titanium |
High strength, light weight, good bio-compatibility
|
Ti-6Al-4VEli |
Medical implants
|
Ground & polished +/-.002 |
30.2 | 6 |
To review our Machining Materials Guide, please click here.
