Copper C11000
Copper alloy 110 is an extremely popular copper alloy, with a wide range of applications due to its high corrosion resistance, conductivity, and finish. It has the highest electrical conductivity of any metal, except silver. When exposed to the elements, it forms a thin protective patina that is relatively impermeable. Copper 110 is ideal when extensive machining is not required, as it has an extremely low machinability compared to other copper alloys.
Copper 110 has a machining cost factor of 3.0 when compared to steel 12L14. It is excellent for hot and cold forming, as well as soldering. Copper 110 is not easily welded or brazed.
Industries & Applications
- Transformers
- Electrical contacts
- Fittings

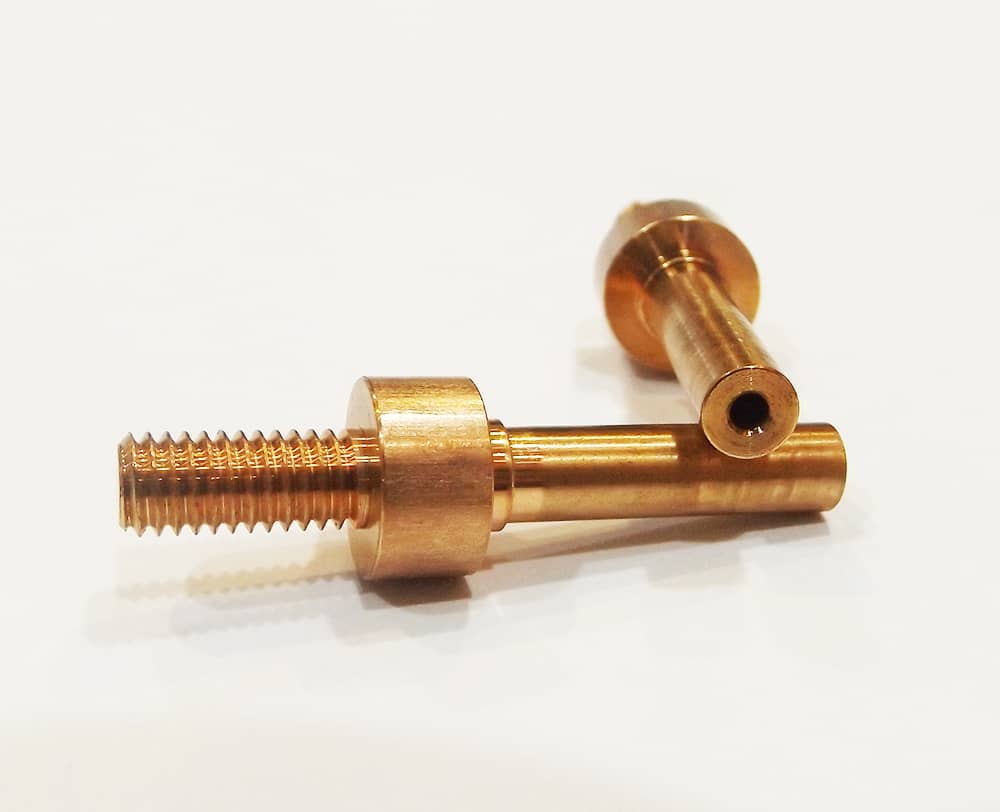

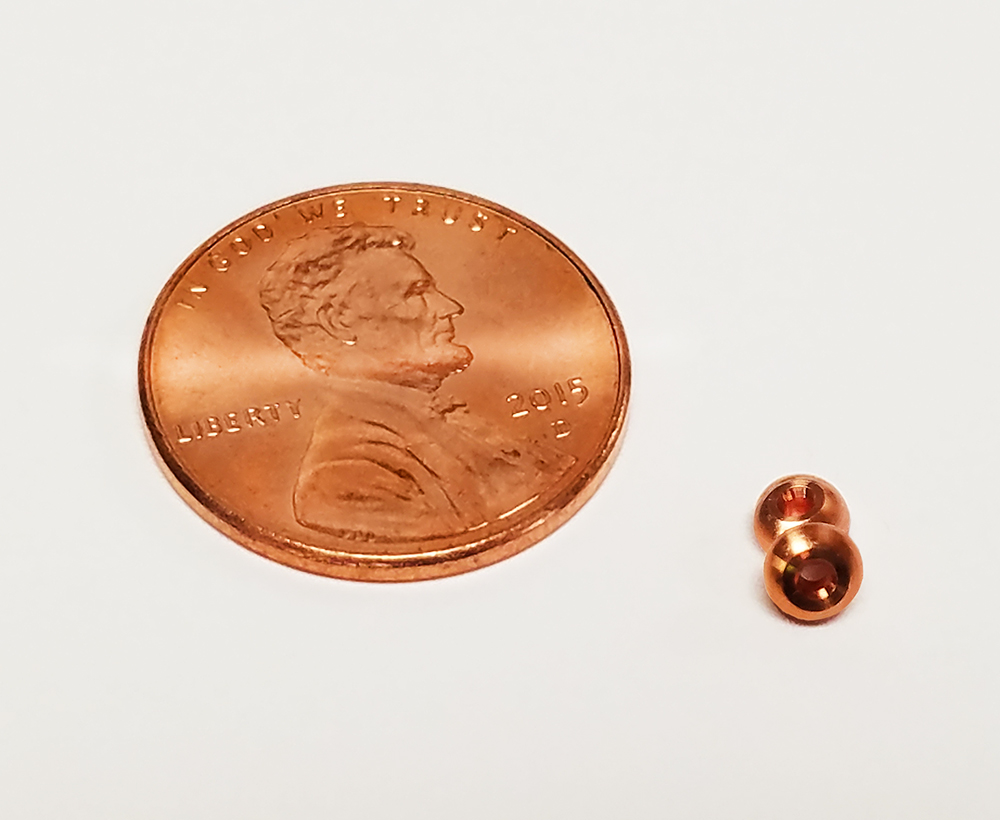

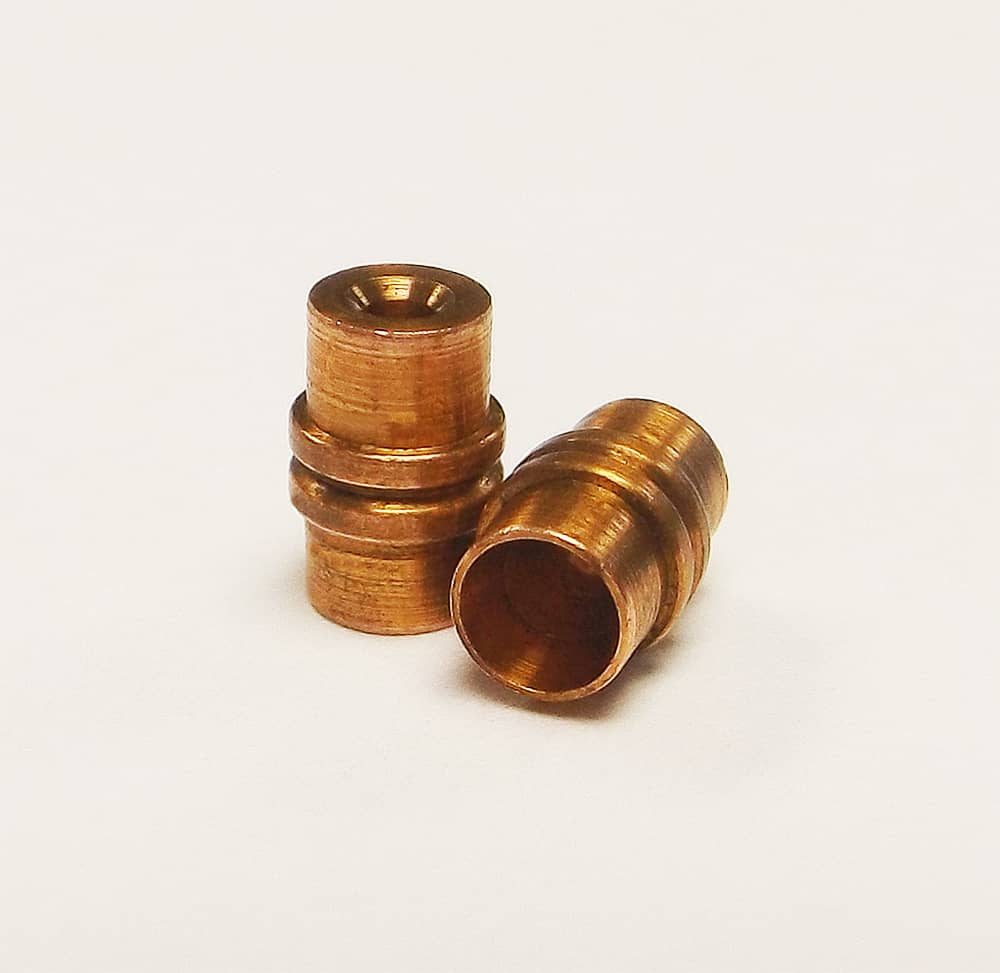

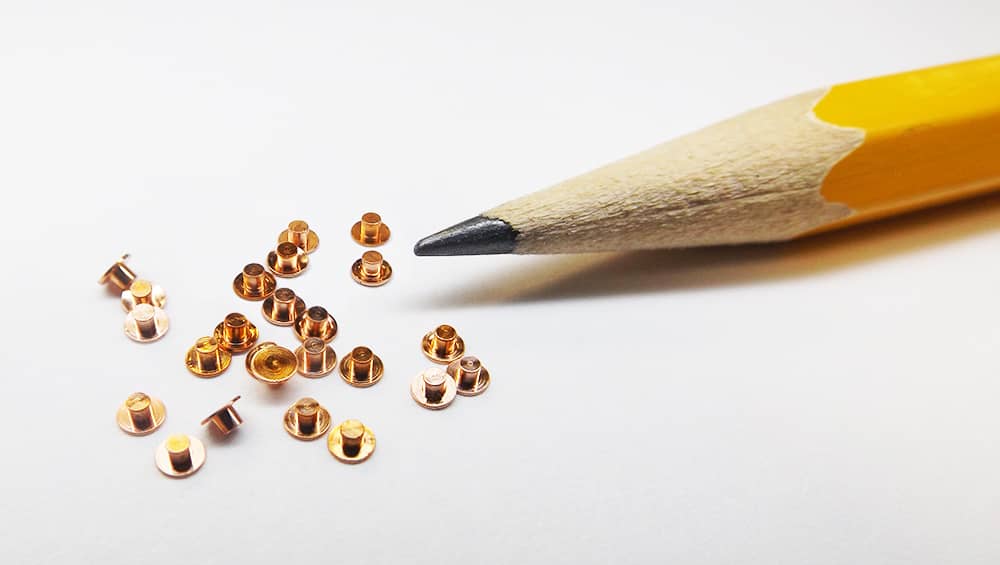

Copper Parts Gallery
C110 / C11000 Copper Characteristics
|
TEMPER |
Yield Strength |
Ultimate Tensile Strength |
Modulus of Elasticity |
Brinell Hardness (500kg/10mm) |
|
Annealed |
10 |
32 |
17,000 |
40 |
|
1/2 Hard |
42 |
36 |
17,000 |
79 |
|
Hard |
41 |
46 |
17,000 |
79 |
Copper Cost Comparison
| Type | General Characteristics | Alloy | Common Applications | Tolerances for a 1/2" Dia. Bar | Material Cost Factor | Machining Cost Factor |
|---|---|---|---|---|---|---|
| Copper Alloys |
High corrosion resistance, conductivity, and finish
|
C11000 |
Transformers, electrical contacts, fittings
|
+0015 | 3.4 | 3 |
Common Material Cost Comparison
| Type | General Characteristics | Alloy | Common Applications | Tolerances for a 1/2" Dia. Bar | Material Cost Factor | Machining Cost Factor |
|---|---|---|---|---|---|---|
| Steel |
Designed for excellent machinability. Case hard only
|
12L14 |
Endless commercial products; probably more pounds used in turned products than any other bar stock
|
Cold drawn 0 |
1 | 1 |
| Stainless Steel |
Designed for machining, non-magnetic
|
303 |
Electronic hardware, automotive, aerospace, medical instruments, and many applications requiring corrosion resistance
|
Cold finished +/- .002 |
1.9 | 2.7 |
| Brass |
Strength, corrosion and wear resistance, and excellent machinability
|
C35300 |
Well suited for parts with knurling or threading
|
+0015 | 3.5 | .07 |
| Aluminum |
Designed for machining
|
2011 |
Electronic hardware, endless commercial products
|
Cold finish +/-.0015 |
3.8 | .6 |
| Titanium |
High strength, light weight, good bio-compatibility
|
Ti-6Al-4VEli |
Medical implants
|
Ground & polished +/-.002 |
30.2 | 6 |
