Aluminum 2024
Aluminum alloy 2024 is an exceptionally high mechanical strength alloy, suitable for parts that require more strength while remaining lightweight. It also has excellent fatigue and cracking resistance, making it a desirable material for aircraft components. Aluminum 2024 can be machined to a high finish.
Aluminum 2024 has a machining cost factor of 0.7 when compared to steel 12L14. It can be forged and hot worked, but is not ideal for welding or soldering. 2024 responds well to heat treatment, annealing, and tempering. It can be anodized, but results in a darker and less corrosion resistant finish than Aluminum 6061.
Industries & Applications
- Electronic hardware
- Aircraft components
- Automotive components
- Structural applications

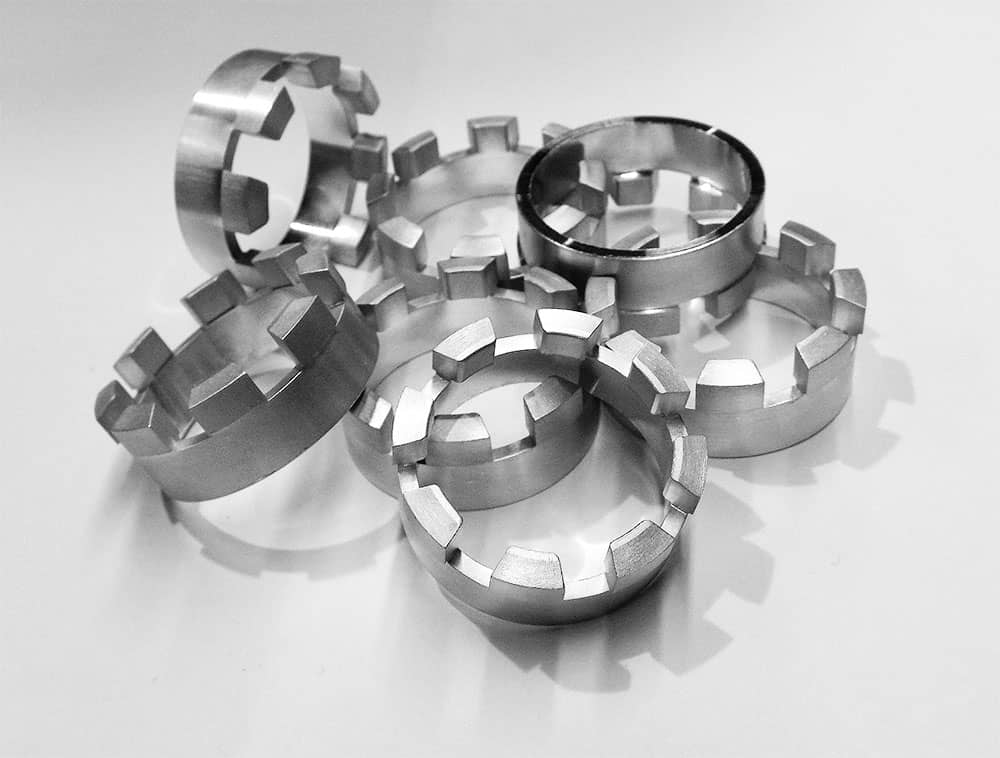

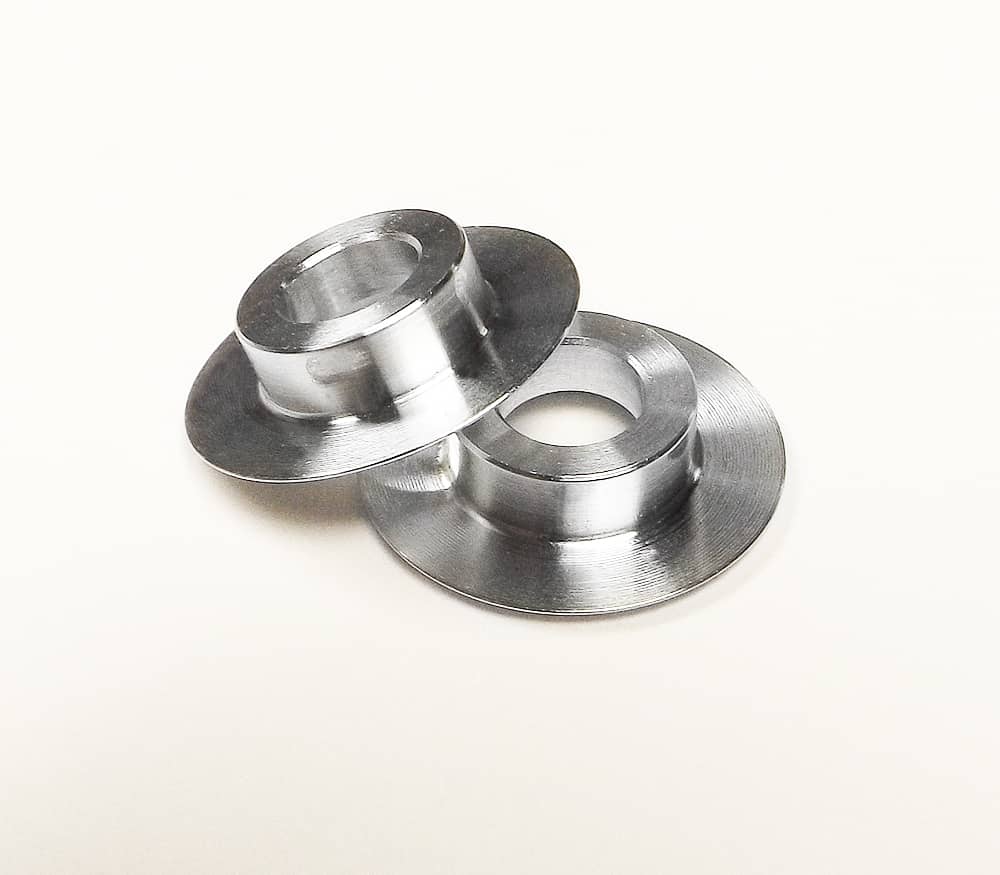

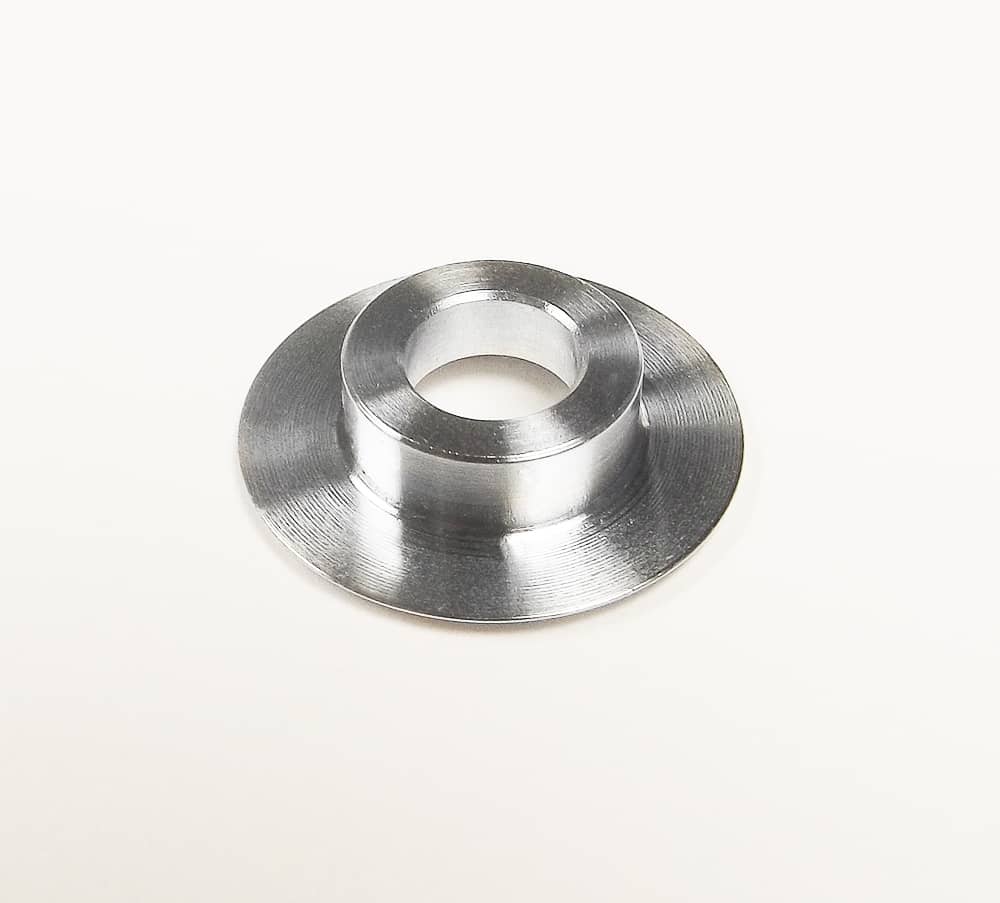

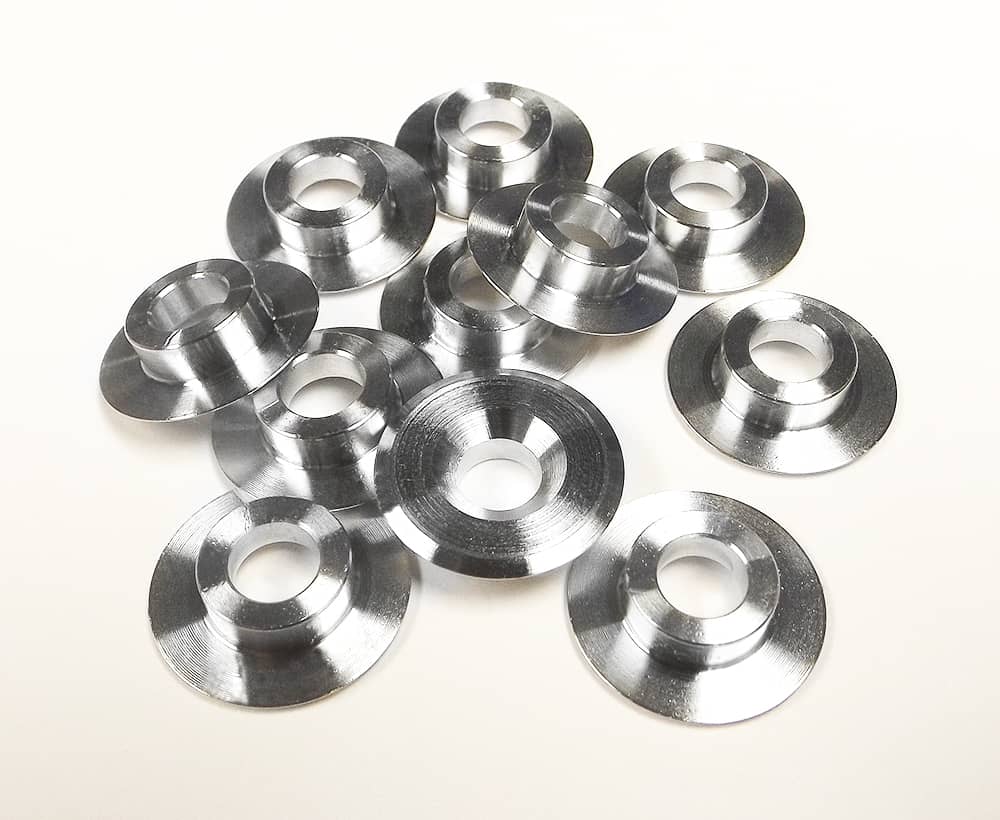

Aluminum Parts Gallery
Aluminum 2024 Characteristics
|
TEMPER |
Yield Strength (ksi) |
Ultimate Tensile Strength (ksi) |
Modulus of Elasticity (ksi) |
Brinell Hardness (500kg/10mm) |
|
Untempered |
14 |
32 |
10,600 |
47 |
|
T4, T351 |
45 |
70 |
10,600 |
120 |
|
T6 |
50 |
62 |
10,600 |
125 |
|
T62 |
57 |
62 |
10,600 |
125 |
|
T3511 |
48 |
68 |
10,600 |
125 |
|
T851 |
58 |
66 |
10,600 |
128 |
Aluminum Cost Comparison
| Type | General Characteristics | Alloy | Common Applications | Tolerances for a 1/2" Dia. Bar | Material Cost Factor | Machining Cost Factor |
|---|---|---|---|---|---|---|
| Aluminum |
Improved strength, high fatigue and cracking resistance
|
2024 |
Electronic hardware, aircraft components, automotive parts, structural applications
|
+/-.0015 | 5.8 | .7 |
Common Material Cost Comparison
| Type | General Characteristics | Alloy | Common Applications | Tolerances for a 1/2" Dia. Bar | Material Cost Factor | Machining Cost Factor |
|---|---|---|---|---|---|---|
| Steel |
Designed for excellent machinability. Case hard only
|
12L14 |
Endless commercial products; probably more pounds used in turned products than any other bar stock
|
Cold drawn 0 |
1 | 1 |
| Stainless Steel |
Designed for machining, non-magnetic
|
303 |
Electronic hardware, automotive, aerospace, medical instruments, and many applications requiring corrosion resistance
|
Cold finished +/- .002 |
1.9 | 2.7 |
| Brass |
Strength, corrosion and wear resistance, and excellent machinability
|
C35300 |
Well suited for parts with knurling or threading
|
+0015 | 3.5 | .07 |
| Aluminum |
Designed for machining
|
2011 |
Electronic hardware, endless commercial products
|
Cold finish +/-.0015 |
3.8 | .6 |
| Titanium |
High strength, light weight, good bio-compatibility
|
Ti-6Al-4VEli |
Medical implants
|
Ground & polished +/-.002 |
30.2 | 6 |
